Data logger for absolute pressure, temperature and humidity – Testo 176 P1

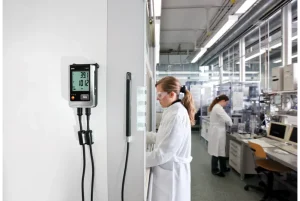

When ambient conditions, for example in a laboratory, need to be documented securely and highly accurately, the testo 176 P1 is the right data logger. It has an integrated absolute pressure sensor and connection possibilities for two external temperature/humidity probes (optional).
  • Continuous measurement and documentation of absolute pressure
  • Two optionally connectable probes for humidity and temperature values
  • Large measurement data memory for up to 2 million measurement values
  • Software for data evaluation on a PC

Details

Pressure data logger testo 176 P1 has an integrated sensor which measures absolute pressure precisely in the range from 600 mbar up to 1100 mbar.

Up to two temperature/humidity probes can be additionally connected to the 5-channel pressure data logger testo 176 P1. A wide selection of probes is available to you for this purpose.

The lock included in delivery protects your loggers from unauthorized access.

Scope of delivery

testo 176 P1, 5-channel pressure data logger with internal pressure sensor (absolute pressure) and external probe connections (NTC/ capacitive humidity sensor). Including wall bracket, battery and calibration protocol.

Technical Data

General technical data

Weight

34 g

Dimensions

60 x 38 x 18.5 mm

Operating temperature

-20 to +70 °C

Product-/housing material

Plastic

Protection class

IP65

Channels

1 internal

Product colour

Black

Standards

2011/65/EU; EU-guideline 2014/30/EU

Measuring rate

1 min – 24 h

Battery type

2 x 3V button cell (CR 2032)

Battery life

1 Year (15 min measuring cycle, +25 °C)

Memory

16,000 measuring values

Storage temperature

-40 to +70 °C

Temperature – NTC

Measuring range

-20 to +70 °C

Accuracy

±0.5 °C (-20 to +70 °C)

Resolution

0.1 °C

Application
